Accelerate Your product development Timeline and Get to Market Faster with extensive line up of Argus Embedded Development Boards and Kits such as Microcontroller Board, Microprocessor Boards and Processor Boards System coupled with Argus Integration & Design support Services.

Argus Systems Embedded Development Boards (ARM Development boards, STM32 Development Boards, AVR Development Boards, ATMEGA Development Boards) and Kits are cost-optimized and ready for industrial use and integration into your application. These solutions meet customers high-quality, high-reliability, and long product life-cycle requirements.

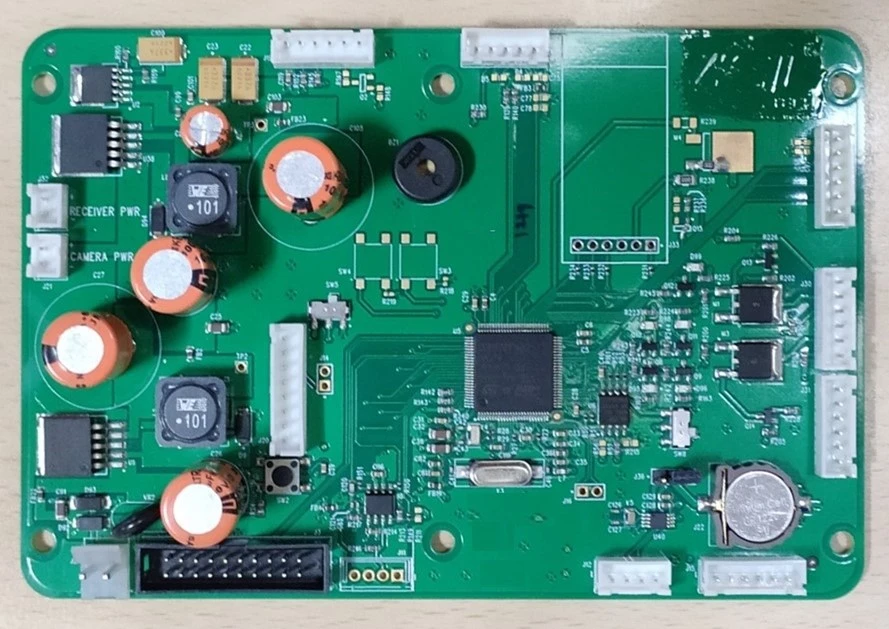

ARM Development Board

ARM® Cortex®-M4(32-Bit) Controller board with SPI, UART, I2C, GPIO Interfaces to integrate with external peripherals.

Technical Specification:

  • Operating Voltage (VDC)- 5V-12V input
  • Processor - ARM® Cortex®-M4(32-Bit)
  • Speed - 180MHz
  • Flash Memory size - 2MB
  • SRAM Size - 256KB
  • UART Ports - 2
  • SPI Port - 1
  • I2C Port - 1
  • GPIO Port - 8
  • USB Port - 1
  • RTC - 1
  • SPI Flash memory - 32 Mb
  • 4G LTE Remote monitoring system

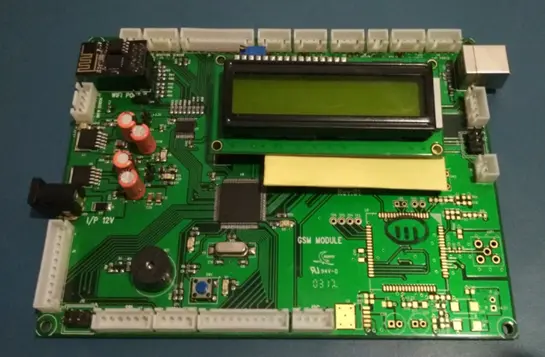

    ATMEGA Development Board

    • Power supply
    • ADC interface: J1
    • ADC interface: J9
    • Programming Port: J30
    • SPI Interface-1: J31
    • ISP Programmer)/SPI Interface-2: J10
    • USART3 Connector: J12
    • USART2 Connector: J29
    • I2C Connector: J16
    • SPI Connector: J17
    • Ultrasonic Distance Sensor (HCSR04): J21
    • Humidity and Temperature Sensor (DHT11): J13
    • Moisture Sensor: J14
    • ADC ports: J15
    • ADC ports: J18
    • ADC ports: J20
    • ANT1
    • SIM900/GSM Module USART: J26
    • SIM Interface/li>
    • Wi-Fi Module: J28 connector
    • External I/O interfaces
    • LCD Display-2x16: U6
    • RESET
    Welding Access Control & Data Logger

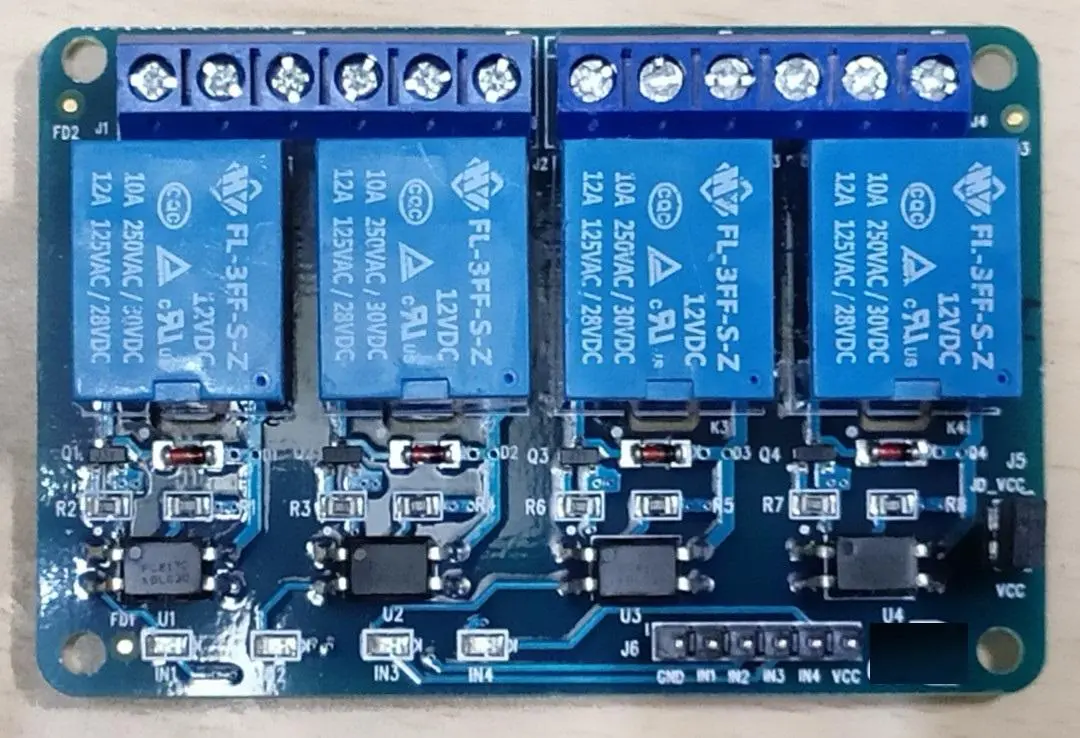

    Multi Channel Relay Module

    • No. of Relay Ports: 4/8
    • Operating Voltage: 12V DC.
    • Equipped with high-current relay 10A@250VAC / 10A@30VDC.
    • It can control both AC and DC appliances such as Solenoids, Motors, lights, fans, etc.
    • High-quality screw terminals (Terminal Block) provided (C, NC, NO) for quick and easy connection.
    • Freewheeling diode to protect your microcontroller.
    • Input Signal Pin connected to Burg stick for easy accessibility.
    • LED Status indicators to indicate the relay ON/OFF status.
    Welding Access Control & Data Logger

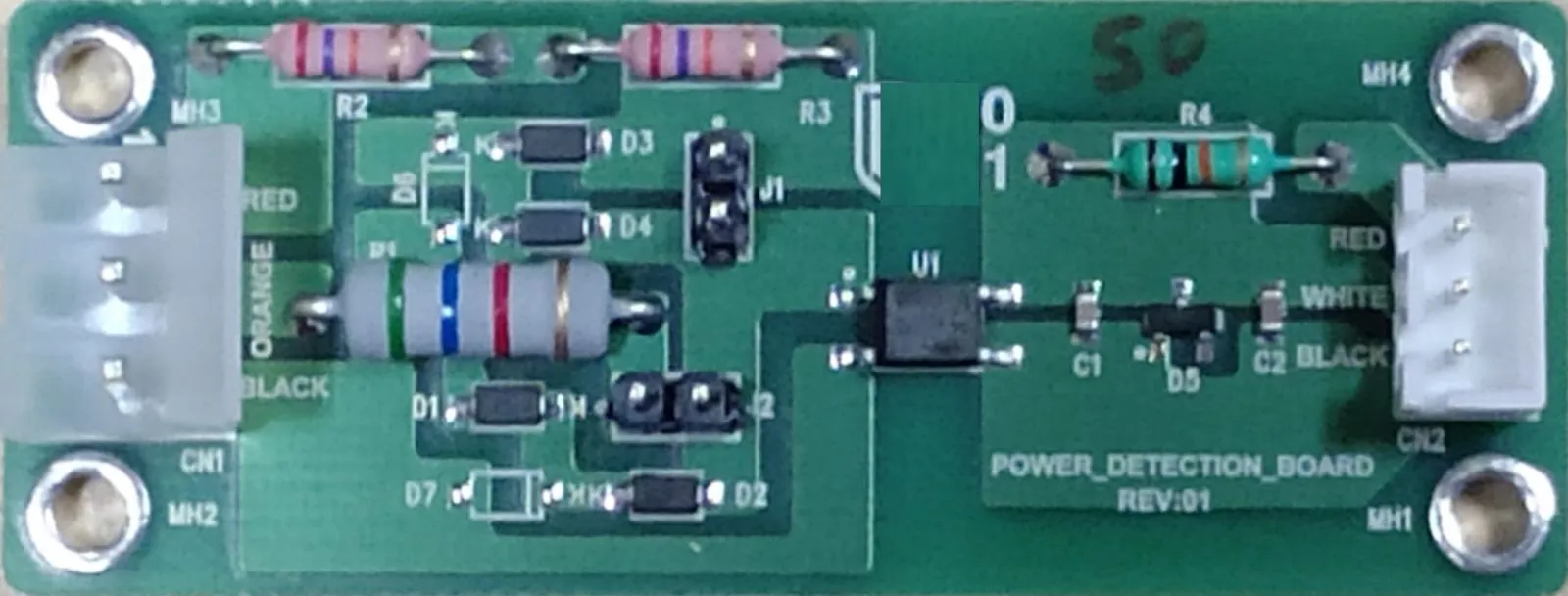

    Voltage Detection Module

    • Voltage Detection module Monitors presence of 220V AC or 24V DC input supply.
    • Indicated status Output TTL Level: 3.3V/5V.
    • Adaptive to PLC 24V level. Suitable for PLC (Programmable Logic Controller) applications.
    • Optocoupler Isolation: Provides electrical isolation and noise reduction.
    • Protects sensitive components from voltage spikes.
    Welding Access Control & Data Logger

    Data Converters ( RS232, RS422, RS485)

    Serial Data Converters are small modules that convert single-ended RS-232 signals into differential RS-422 or RS-485 signals. Signal conversion is completely bidirectional - outgoing RS-232 signals are converted to RS-422/RS-485 differential levels and incoming RS-422/RS-485 differential signals are converted into single-ended RS-232 signals.

    Serial Data Converter has a DB-9 female connector on one end that mates to the DB-9 male connector found on the rear of most PCs and other serial devices. Besides its use with PCs, the Converters can be used with any 9-pin RS-232 device whose pinout matches that of a PC's COM port. Once equipped with the Converter, the PC or RS-232 device can communicate with other RS-422 or RS-485 devices.

    • Convert single-ended RS-232 signals to RS-485 or RS-422 differential signals. Bidirectional data transfer with increased noise rejection.
    • Extends RS-232 transmission distance to 1.2 Km. Overcomes RS-232's 50-foot cable limit.
    • Adds multi-drop capability to an RS-232 signal. Drives up to 50 loads.
    • Meets FCC Class A and European CE requirements. Should not interfere with other devices.
    Data Converters

    Serial to Ethernet Converter

    Any device with a standard serial interface can connect to Ethernet with embedded devices servers in a snap. Serial to Ethernet Converter provide a 10/100 Mbps Ethernet interface with ready-to-use operation modes such as TCP Server, TCP Client, and UDP.

    • 10/100 Mbps Ethernet interface
    • 230.4 Kbps serial interface
    • TCP Server, TCP client, UDP, and Real COM operation modes
    • Support for DHCP, BootP, Static IP, and ARP
    • SNMP and e-mail alert for event trapping and notification
    • Low power consumption at 1.5W, with single +5V input
    • Easy on-site configuration of network settings
    • Simple command frame format
    • Comprehensive command set for serial and network configuration
    • Easily switch between software and hardware triggers
    • Protocols: ICMP, ARP, IP, TCP, UDP, DHCP, Telnet, HTTP, SNMP, SMTP Utilities: Network Enabler Administration Suite for Windows 98/NT/2000/XP/2003/Vista
    • OS Driver Support: Windows 95/98/ME/NT/2000/XP/2003/XP x64/2003 x64 COM driver, Linux Real TTY, Unix
    • Configuration: Web console, serial console, Telnet console, or Windows utility
    • Operation Modes: TCP Server, TCP Client, UDP, Real COM
    Serial to Ethernet Converter
    Embedded Development Boards -Microprocessor Boards, Microcontroller Boards

    Reach out to AESPL for ARM Development boards, STM32 Development Boards, AVR Development Boards and ATMEGA Development Boards.

    Argus Systems (AESPL) is an Embedded System Design Company and Electronic manufacturing company with Its Operations in India, USA, UK Providing Embedded Development Boards (Microcontroller Development Boards, Microprocessor Development Boards, Processor Development boards) such as ARM Development boards, STM32 Development Boards, AVR Development Boards and ATMEGA Development Boards and kits ( Relay Module, Voltage Detection Module, Serial Data Converters (UART, USB, RS232, RS485, RS485, Ethernet).
