Medical Device Design and Development - Medical Electronics, Medical Software

Argus Systems(AESPL) has built competencies in the Medical Devices and healthcare devices domain acquiring in-depth knowledge and expertise, creating intellectual property, re-usable platforms, and solutions meeting Medical Devices ISO 13485 quality management standard. We have integrated hardware, software, and system design services to provide our customers with valuable solutions in the Medical Electronic Industry domains. Argus Systems believes in "First time Right solution" and with an experienced Product Engineering team, we can be your complete Medical Device Design and Development (Medical electronics, Medical software ) Partner

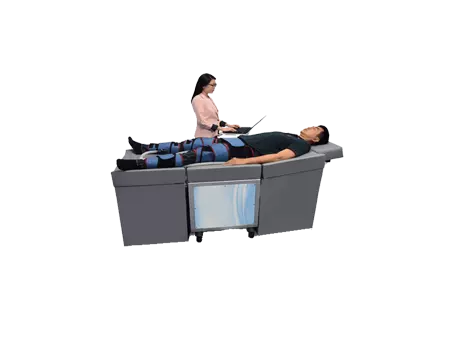

External Counter-pulsation Controller

  • ECP (External Counter-pulsation) process comprises synchronized external pressure applied on the lower limbs during the diastole phase of the heart cycle.
  • The application of a 3-lead ECG enables the compression of the blood vessels to be timed according to one's heartbeat. During the diastolic phase, pressure cuffs wrapped around the calves, thighs, and hips inflate sequentially. Right before the next heart contraction, the cuffs deflate simultaneously, thus decreasing the cardiac workload.
  • ECG Circuit
  • External Counter-pulsation Controller has Plethysmography circuit  measuring changes in volume in different areas of the body with blood pressure cuffs and pulse measurement
  • Blood Pressure measurement: Thigh, butt, calf
  • Tank Pressure Pump controls for Blood pressure cuffs

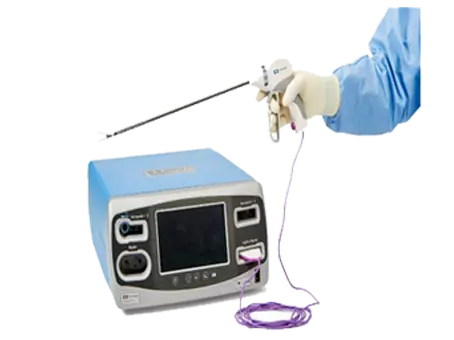

Thoracic Sealer Audio Trainer

  • Thoracic sealer audio trainer simulates the activation, re-grasp/error, and seal complete tones. This Unit is used to demonstrate the cadence of grip and fire of the activation for laparoscopic instrument
  • The product uses a combination of pressure and energy to create a consistent and permanent vessel fusion without dissection or isolation. The Feedback-controlled response system automatically discontinues delivery when the seal cycle is completed.

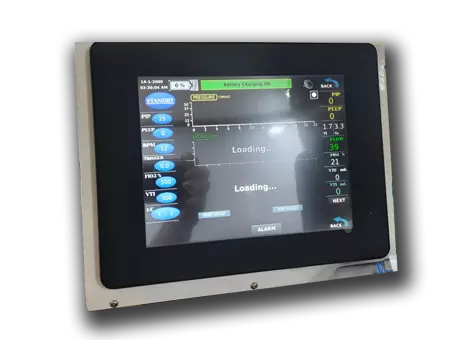

ICU Ventilator

  • ICU Ventilator Controller card with flow sensor, Pressure sensor, O2 sensor, Temperature sensor, valve control.
  • Communication Interfaces: RS232, RS485, Ethernet, USB.
  • Blower controller card with suitable Air Blower.
  • Powerful PLC (programmable logic controller) expand up to 2048 I/O points
  • 10.4" HMI Color touch panel with multi-language display.
  • AC/DC Input voltage with Battery Backup.

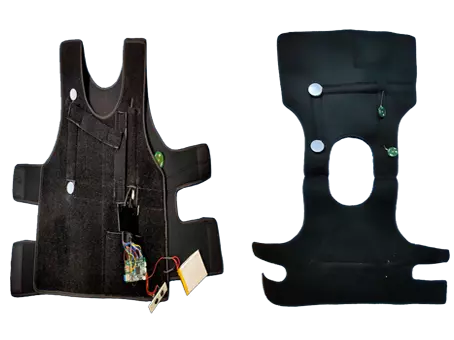

Respiratory Sound Analysis device

  • Respiratory Sound Analysis Device allows Simultaneous chest and longs auscultation on 4 anterior and 4 posterior points.
  • Observes sound, record it and send the data via Bluetooth to Mobile
  • Automatic data upload to the cloud for analysis.
  • Perforated breathable neoprene and poly-fleece material

Portable Ventilator

  • Portable Ventilator Electronics cards with following functions to implement full feature ventilator product.
  • CPU Card with flow sensors, pressure sensors, O2 sensor, temperature sensor, inhalation & exhalation valve control , Display & Keypad Interface
  • Turbine/Blower controller card with suitable turbine.
  • Power management board to support external AC/DC supplies and battery back-up
  • Buzzer/Alert module
  • LCD Display module
  • Keypad module
  • battery charging module
  • patient circuit with associated tubing

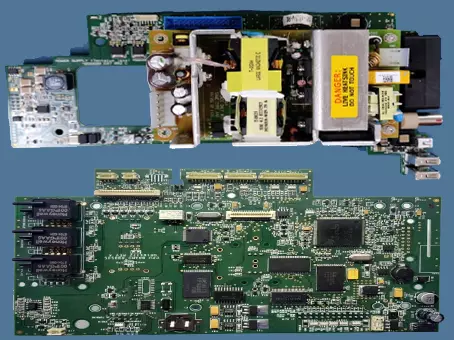

Ventilator Electronics

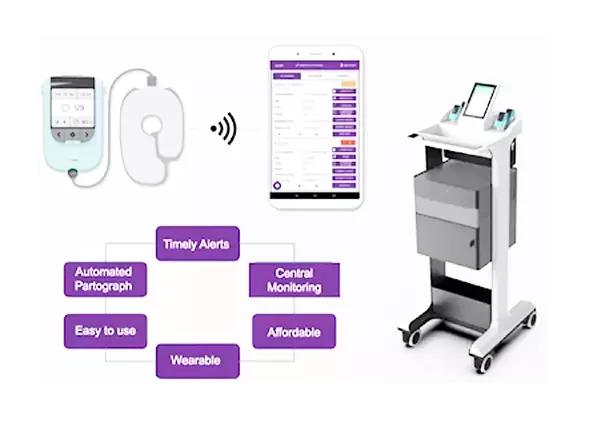

Heart Rate Monitor (HRM)

Heart Rate Monitor for Maternal And Child is a smart portable device which continuously monitoring the heartbeat of the fetus and the contractions of the woman’s uterus with the help of a patch placed on the abdomen of a pregnant women with a high accuracy which has ability to reduce maternal and neonatal mortality during labor.

  • 3.5” TFT Liquid Crystal Display/ Color graphic LCD display.
  • Multiple operation modes: Digital /Graph Analysis Modes.
  • 4 channel Electrode Sensors for Heart Rate Monitoring( HRM ).
  • Ultra-low power wireless communication with WIFI module.
  • Built in rechargeable Li-ion battery with Auto power save mode.
  • Heart rate Monitoring application for Phones/Tab/Monitors ( Android, iOS, Windows) .
Ventilator Electronics

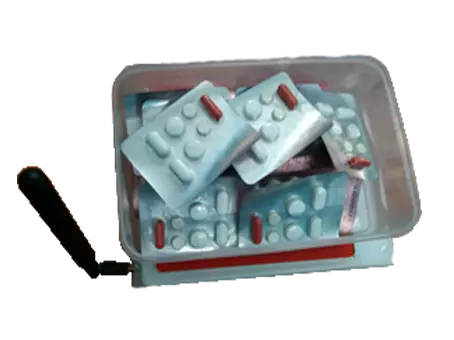

Remote therapeutic monitoring

  • Remote therapeutic monitoring of RNTCP Drug box weight and to ensure compliance.
  • Non-compliance is to detect in case the patient did not take the prescribed dosage.
  • Alerts are sent to DOTS observer and Patient.

Pain management Cryo-thermic wrap

  • Multi-Modal Temperature Relief – Instant Hot, Cold and Contrast to comfort sore and aching body parts.
  • Pain management Cryo-thermic wrap has user controllable temperature range
  • Perforated breathable neoprene and poly-fleece material
  • Rechargeable Lithium Polymer Battery

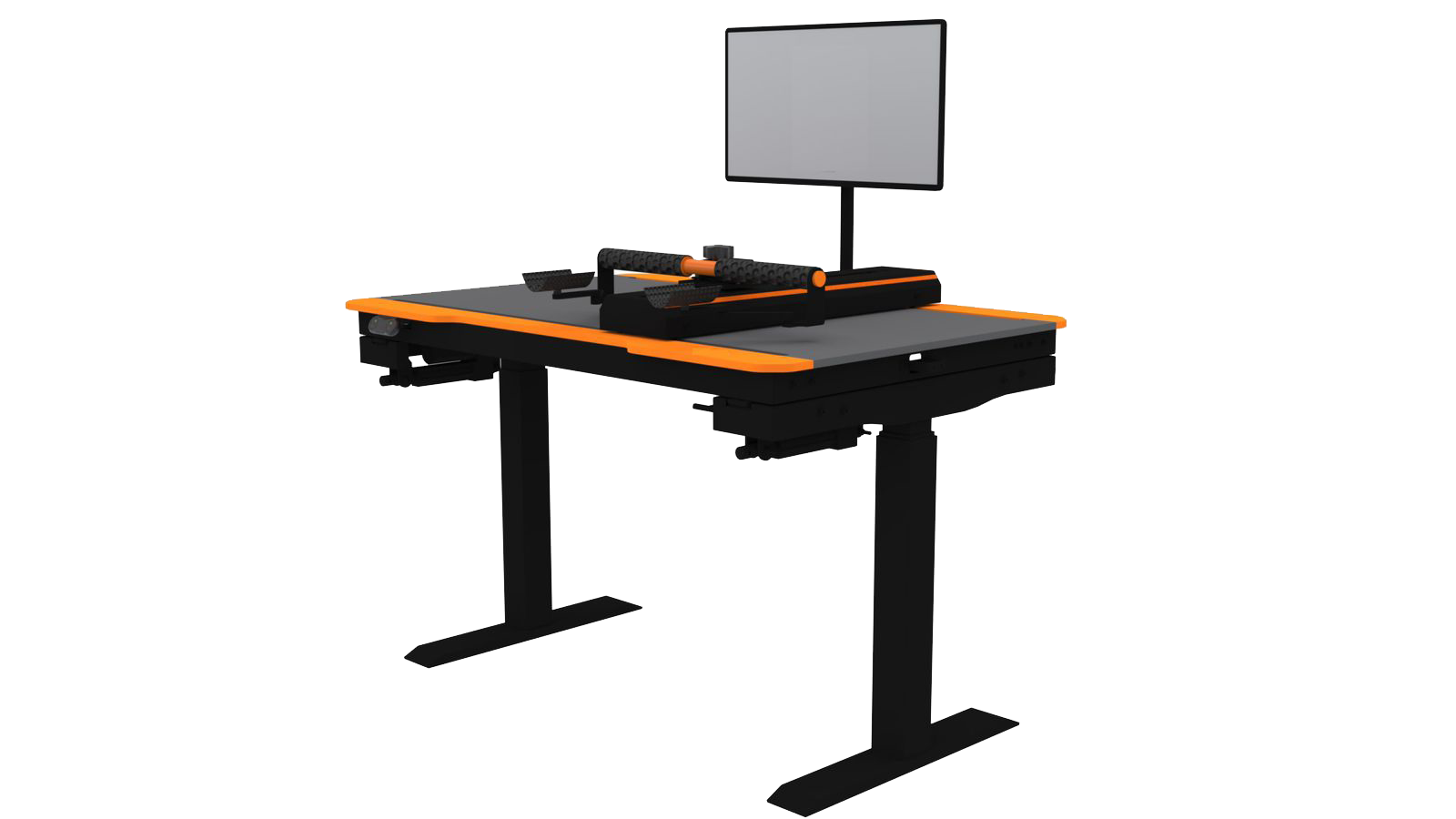

Arm Rehabilitation Device

Game-based Arm Rehabilitation Device , motivates patients to engage in therapy using immersive games, leading to an increased number of repetitions. The high number of repetitions reportedly augments the recovery of the arm function.

  • G Integrates single-board computer
  • HDMI display with Mouse and keyboard
  • HD Audio
  • Inclination & Height actuator
  • 3-axis accelerometer and a 3-axis gyroscope
  • Bluetooth
  • Encoder Sensors ( Home X  &   Z )
  • Encoder Sensors ( Position  X & Y  )

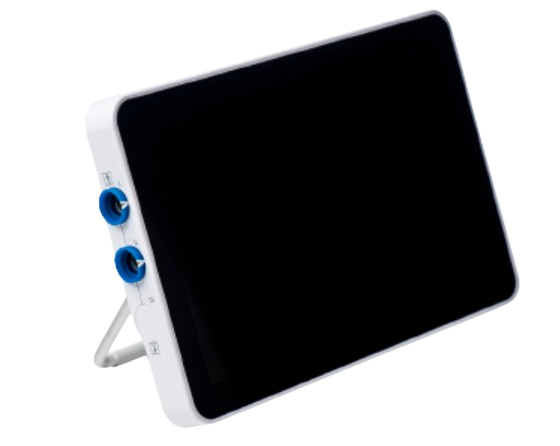

Bronchoscope Video Display Module

  • Bronchoscope Video Display Module is a portable view monitor used to display/perform medical Images/videos of endoscopy procedures at 1080pX1080p 60fps.
  • Dual channel allows two Endoscopes to be connected and viewed at same time.
  • Processor Module performs Image signal processing and have features to share images onto PACS (picture archiving and communication system) server as per DICOM (Digital Imaging and Communications in Medicine) , the recorded procedure can also be exported via USB drive.
  • Built-in WIFI and Ethernet port for internet connectivity.
  • Capabilities of various user profiles like admin, system maintenance, custom user for doctors and nurses allowing various level of access to memory and function to the user for security and access.
  • Bronchoscope Video Display Module has a HDMI out for connecting to external screen (HD, FHD, QHD,4k).

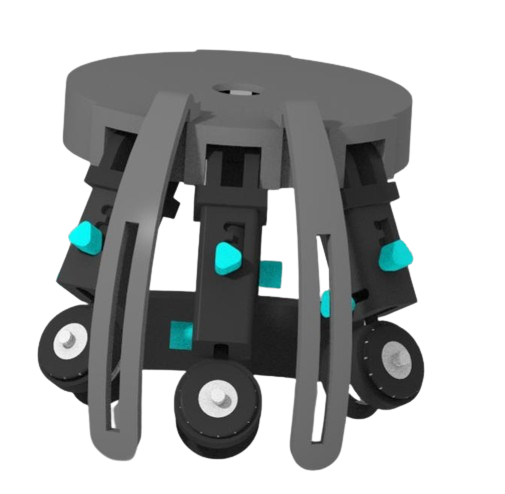

Cranial Electrotherapy Stimulator (CES)

Cranial Electrotherapy Stimulator (CES) is a non-invasive device with multiple channles and is worn on the forehead part of the user.

  • Up to 8 configurable channels.
  • Configurable Sinusoidal Waveform of 0.5 Hz to 60Hz with Default 5Hz.
  • Current: 500uA - 4000uA selectable (Default - 500uA).
  • Automated iterations as per predefined prescriptions – up to 3 Sessions.
  • After pre-defined session is completed, the device goes into sleep mode.
  • Control for Emergency Stop.
  • Handheld device with Rechargeable battery.

ISO 13485 Medical Device Design and Development

Argus Application Eng team is ready to discuss your healthcare and Medical device design and development requirements.

Argus Systems (AESPL) is a globally recognized Electronic Medical Device Design and Development company with Its Operations in India, USA, UK offering product and solutions for Medical devices and healthcare devices such as ICU Ventilator, portable Ventilator, Heart rate monitor, Respiratory Sound Analysis, Arm Rehabilitation Device, External Counter-pulsation Controller (ECP) , Pain management Cryo-thermic wrap, Bronchoscope Video Display Module , Cranial Electrotherapy Stimulator (CES), remote therapeutic monitoring, Thoracic Sealer Audio Trainer Device meeting Medical & Healthcare devices ISO 13485 quality management standard.
