Electronic technologies for Railway & Transportation

The transportation industries present a set of challenges for railway electronics including being able to withstand high levels of motion and heat, and long lifetime requirements along with the industries drive to zero defect electronic assemblies as a product of their requirement for high reliability.

Argus Systems (AESPL) robust Railway Transportation Electronics manufacturing and test processes, developed through many years working with certified TS 16949 supply channel has proven our capability to develop and manufacture control systems and railway electronics for transport, particularly for railway and rolling stock.

We support in development of Transport solutions and products which are innovative, reliable, safe and easy to install. We can contribute to the increased efficiency of your equipment and support transport operators throughout the whole life-cycle of the traction chain, i.e. in the areas of service, maintenance, upgrades, and retrofit projects.

Minimum Voltage Relay

  • 240V AC ± 10V input supply.
  • controlled supply voltage : 48V ± 10% DC.
  • Input value is compared against the controlled supply and if the input value becomes lower than the controlled supply, the relay actuates and interrupts the power supply to the main circuit breaker closing/holding coils.
  • Threshold, hysteresis and delay settings configuration on enclosures for minimum voltage Relay.
  • Adjustable Input Value threshold : 10-120% Un (Un= 200V)
  • Adjustable Delay Time : 0.1 – 10s.
  • Adjustable hysteresis : 5 – 50%.

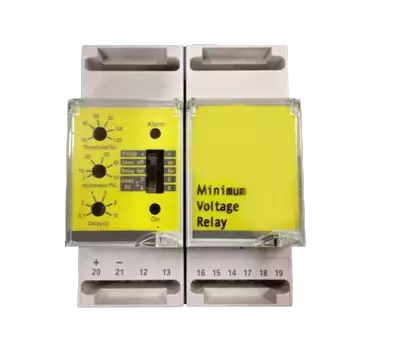

minimum-voltage relay

Motor Drive Control - Digital Field Exciter

  • Multiple Digital Field Exciter configurations to provide control flexibility for Thyristor and Regulator systems.
  • Pulse-width modulated (PWM) power converter modules use Insulated Gate Bipolar Transistors (IGBT) to provide up to 40A nominal output.

    Motor Drive Control systems can support the following applications:

  • Saturable Current Transformers / Power Potential Transformers (SCT/PPT) regulator
  • Brushless exciter regulator
  • Direct current (dc) rotating exciter regulator

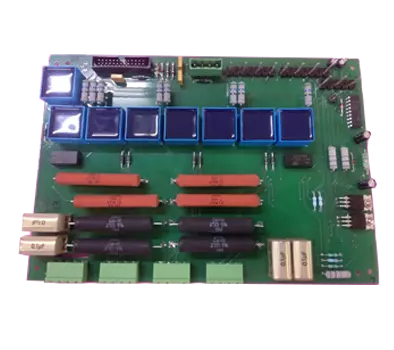

Digital Field Exciter

Minimum Voltage Monitoring

  • Monitors Presence of Minimum voltages in power distribution.
  • Can monitor 24V DC and 110V AC voltages.
  • Lamp indicator to indicate presence of Minimum Voltage.
  • Isolated Voltage Detection circuit .
  • Minimum Voltage Monitoring Unit is Qualified as per Association of American Railroads (AAR) M-1003 QMS.
Minimum Voltage Monitoring
Railway & Transportation Traction Electronics

Contact Argus to discuss your Railway Transportation Power Electronics, Traction Electronics ( Motor Drive control )requirements.

Argus Systems (AESPL) is a Global Electronic Product Design and Electronic manufacturing company with Its Operations in India, USA, UK offering Rail Transportation Solutions for Railway Power Electronics, Traction Electronics such as Voltage monitoring, Minimum Voltage relay, Digital field exciter, Motor Control, Power Supply, Minimum Voltage Monitoring.
