ATEX Exd Exe Electronic control Panels

Electronic Control Units, Junction Boxes, Terminal Boxes

Oil & Gas | Industrial Process Control | ATEX Exd Exe

Electronic Control Panels , Electronic Control Units - Oil & Gas

Argus Systems (AESPL) has built competencies in the Electronic Control Panels & Electronic Control Units acquiring in-depth knowledge and expertise, creating intellectual property, re-usable platforms, and solutions. We have integrated hardware, software, and system design services to provide our customers with valuable solutions in Power & Energy Industry domains. Argus Systems believes in "First time Right solution" and with an experienced Product Engineering team, we can be your complete electronic product design and development partner.


Wellhead Control Panel (WHCP) - Oil & Gas

Wellhead Control Panel ( WHCP) is designed and developed in Argus systems. Self-supported, compact, safe, and reliable alarm and shutdown system for Oil and gas industry, which detect abnormal conditions on a production process and initiate a shutdown if any of the reading shows the operation is no longer within the pre-set safety margins. Abnormal Conditions are indicated by indicator lamps, each associated with a label indicating the condition detected. This Low cost, Easy to Install, and maintenance system has been built to withstand the adverse conditions of the oil-field environment and provides a straightforward interface with the operator. Connects to external sensors/ gauge to indicates for the operator to know the cause of the shutdown.

    Monitored parameters are:

  • Pressure [High Pressure & Low-Pressure sensing from 60 to 20,000 psi]
  • System Battery Level sensors
  • Emergency shutdown command from SCADA/RTU system

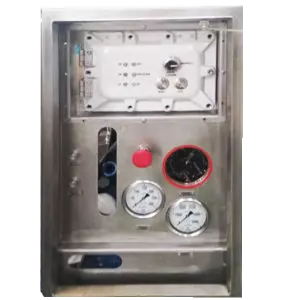

Hydraulic Safety Shutdown System Oil & Gas

Exe Electronic Control Unit - Hydraulic surface safety shutdown system - SSV

For operation and monitoring of electronic circuitry in harsh or explosion hazardous environments, versatile control units are developed with multitude of control functions such as push buttons, LED indicators, control switches.

  • Ex II 2 G Ex db eb IIC T4 Gb
  • Ex II 2 D Ex tb IIIC T130°C Db
  • Material : Stainless steel 1.4404 (AISI 316 L)
  • 5x indicator Lamp red
  • 1x Indicator lamp green
  • 1x Illuminated pushbutton red
  • 1x Illuminated pushbutton Green
  • 1x rotary switch
  • Earth Element
  • Camlock

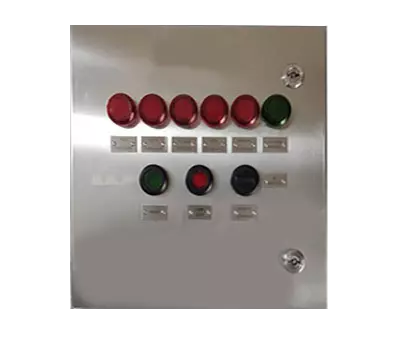

Control Units (Ex e) -Stainless Steel

Emergency shutdown System ( ESD ) Valve Control Unit - ESDV

Electronics Controller for emergency shutdown ( ESD ) Valve detects abnormal Pressure conditions on a production process and initiate a shutdown of valve if any of the reading shows the operation is no longer within the pre-set safety margins of pressure.

  • Pressure [High Pressure & Low-Pressure sensing]
  • System Battery Level sensors.
  • Emergency shutdown command from SCADA/RTU system.
  • The Pressure gauges indicate the actual reading and set points.
  • Indicator lamps indicate the status of pressor sensors and alarms which helps the operator in instantly knowing the conditions of the process.
  • System Normally operates with open ESD valve and closure of ESD valve indicates that an alarm is present.

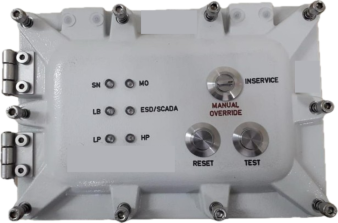

ESDV control unit

ATEX Exd Exe Terminal and Junction Boxes

Argus offers a large selection of ATEX Exe Exd terminal boxes , junction boxes for installation of signal , power distribution networks in explosion hazardous areas suitable for Oil & Gas.

    Ex II 2G Ex db IIB T5 Gb Approved

  • Material: Aluminium alloy [ALSiMg0.3]
  • screw type terminals
  • Open Limit Switch,Close Limit switch
  • Pressure switch
  • solenoid valve
  • 6 ways cable entry with M20 X 1.5 Thread
  • Ex certified Br-Ni Stopper Plug
  • Supplied with Exd approved cable glands

    Ex d IIA IIB IIC IP66 TB approved

  • Material: stainless steel SS316
  • screw type terminals
  • Open Limit Switch, Close Limit switch
  • 4 ways cable entry with M20 X 1.5 Thread
  • Ex certified Br-Ni Stopper Plug
  • Supplied with Exd approved cable glands

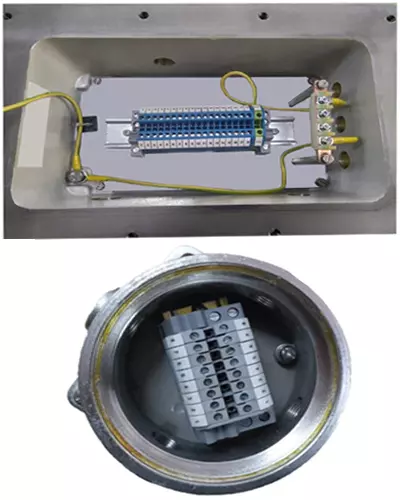

ATEX IECEx Terminal and Junction Boxes
Electronic Control panels & Automation solutions for Oil & Gas

Contact Argus to discuss your Exd Exe ATEX Certified Electronic Control panels solutions for Oil & Gas Applications such as Hydraulic surface safety shutdown system ( SSV), Emergency shutdown system (ESD), Wellhead Control Panel (WHCP), ESD Valve Control Unit ( ESDV ).

Argus Systems (AESPL) is a Global Product Engineering & manufacturing company with Its Operations in India, USA, UK, Australia offering ATEX and IECEx products for Oil & Gas application such as Hydraulic control panel, Hydraulic Safety Shutdown Systems, Emergency shutdown System (ESD), ESD Valve Control Unit ( ESDV ), Wellhead Control Panel (WHCP), SCADA, RTU, Junction boxes and terminal Boxes.
